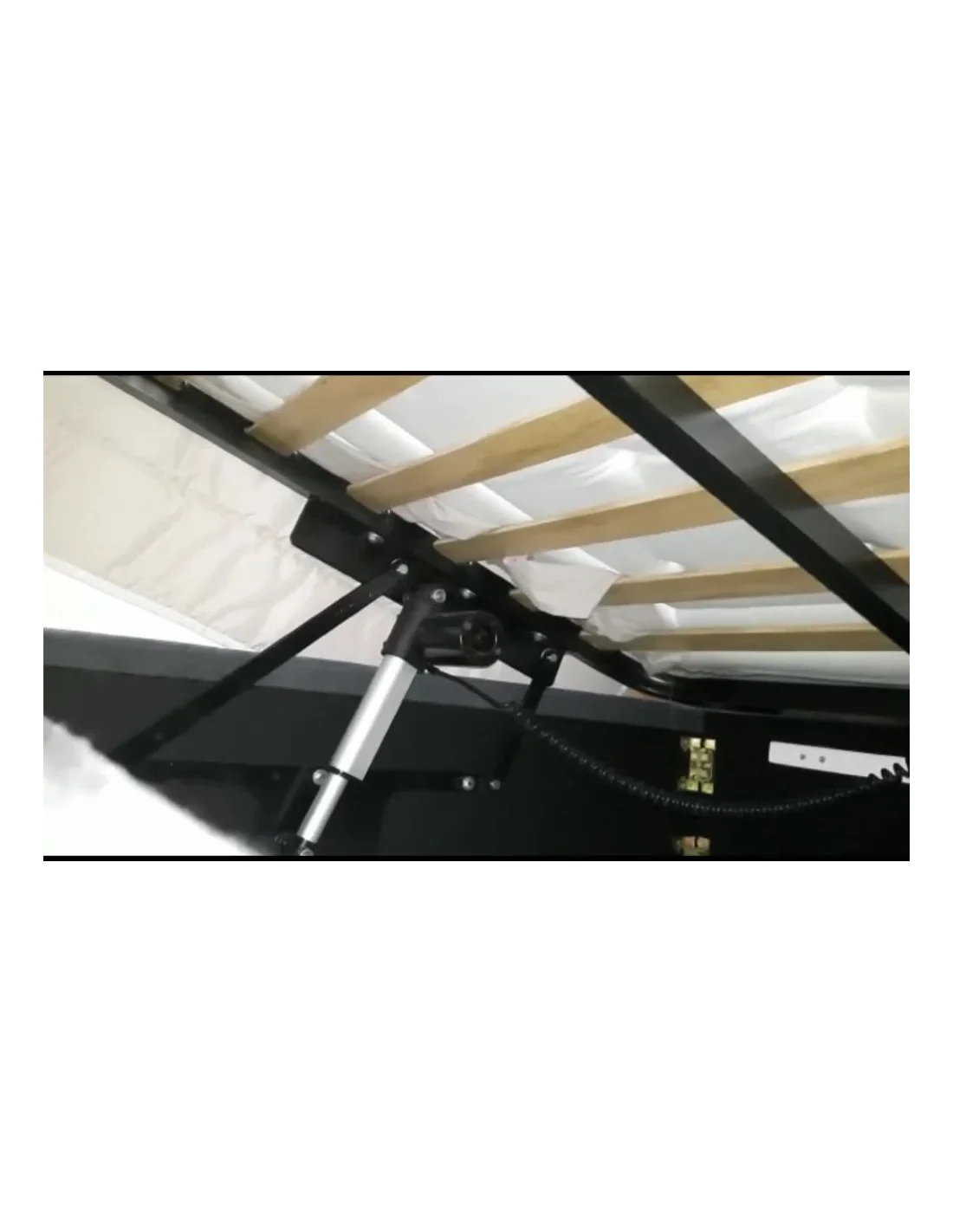

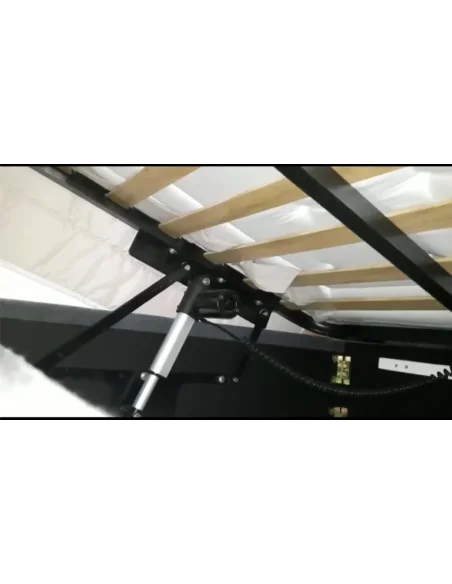

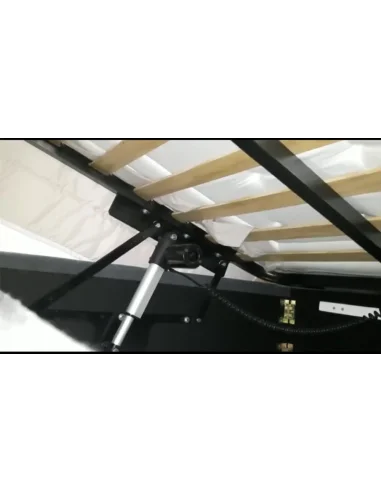

This bed lifting system consists of a pair of articulated brackets with a motor and works with a wired or wireless remote control. They are compatible with virtually all types of metal or wood bed frames. Similar to traditional systems, the application is done with screws on the metal or wood platform, supplied with the set. The fixing on the sides of the bed is done with wood compass nuts where the M6 screws will be tightened.
All the screws required for its application are supplied with the system, as well as the instructions that you can also download on this page.

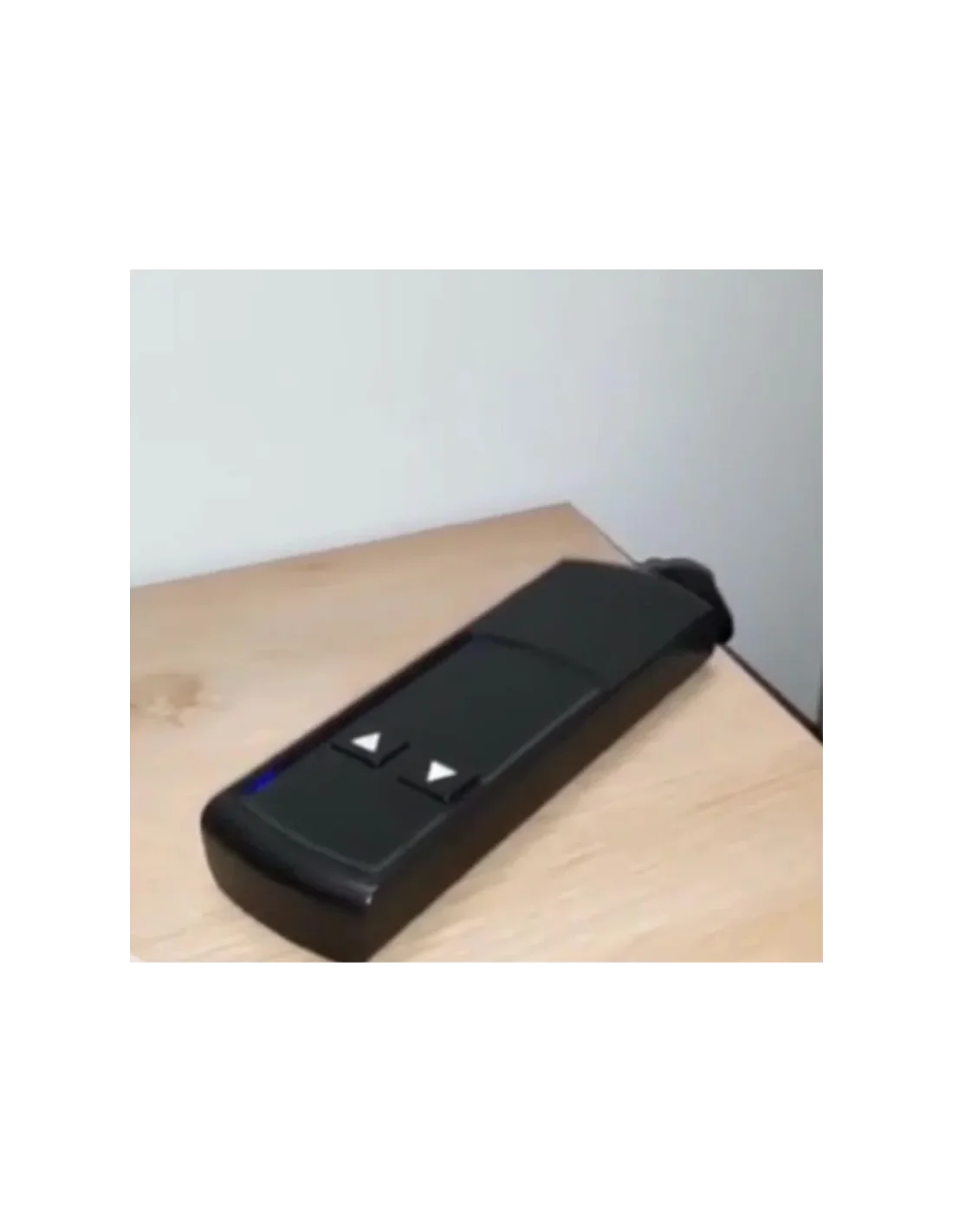

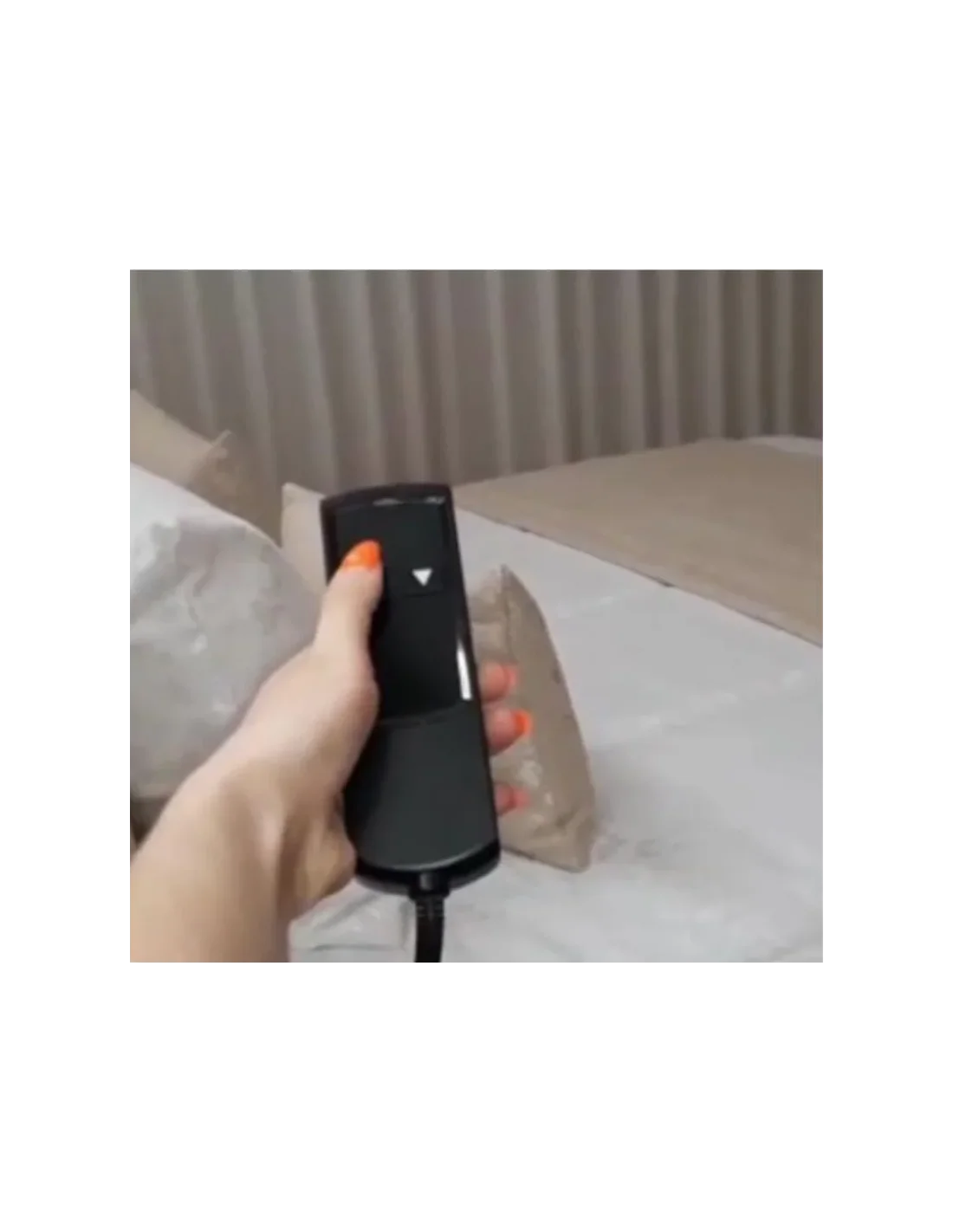

The system is operated by a wired or wireless remote control depending on your choice. The power supply to the mains is transformed to 12V by a power supply, which makes it safe and there is no risk of electrical shock.
It has a compartment for 2 9V batteries of the 6LR61 type, for use in case of an emergency power outage. (Not included)

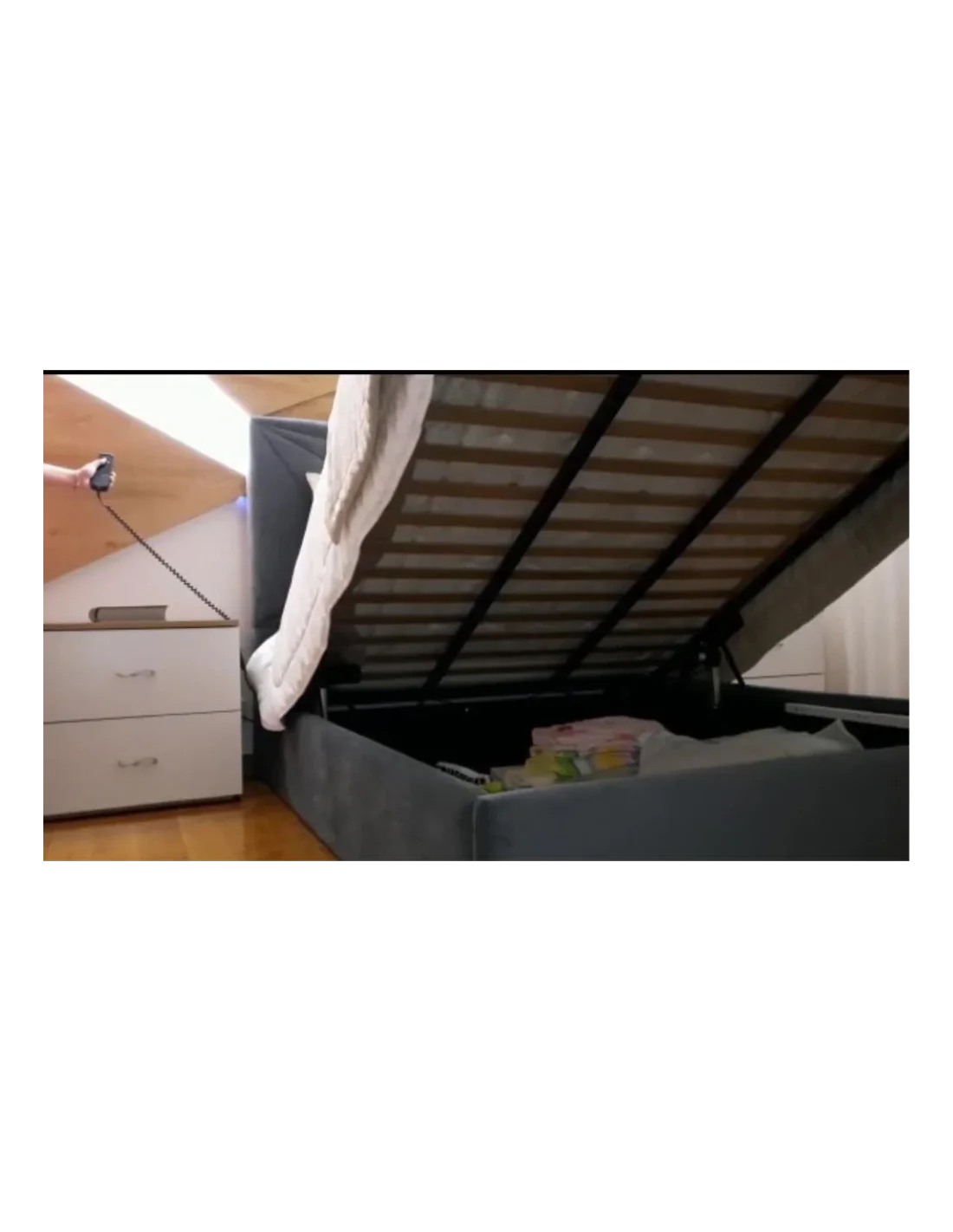

With this system you can raise and lower your mattress effortlessly. The system is universal for all bed base and/or mattress sizes as all the effort is supported by the two independent motors.
Connections are made with quick-connect plugs and when the system is activated, both motors are activated simultaneously, which work in sync to go up and down.
When it reaches full opening or closing, the system turns off even if you continue to press the button. At this point, it is only possible to move in the opposite direction to the one you are currently in.
We also recommend applying 1 or 2 beacons to the head of the bed, depending on the width of the bed, to prevent the mattress from slipping once opened.
Available with different shock pressure powers, according to the shock pressure guide table and mattress size.
The shock absorbers will be supplied in black or gray depending on stock availability.
Care to take into account
You must make sure that the wires are not in contact with the joints to prevent them from being pinched when moving up or down!
Watch the demonstration video here
